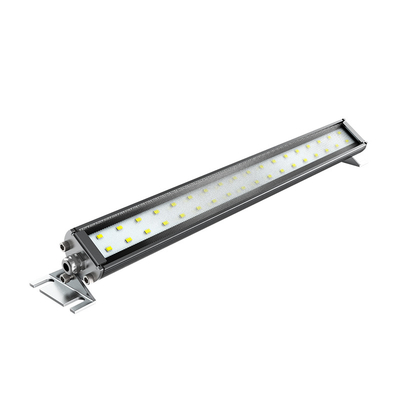

CNC Tool 5 Watt 24V AC/DC IP67 Adjustable Waterproof Multifunction Explosion Proof Led Work Light

1 piece
MOQ
CNC Tool 5 Watt 24V AC/DC IP67 Adjustable Waterproof Multifunction Explosion Proof Led Work Light
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
IP Rating: 67, IP67
Color Temperature(CCT): 6000K (Daylight Alert)
CRI (Ra>): 80
Input Voltage(V): 24VAC/DC
Lamp Luminous Efficiency(lm/w): 80
Lamp Luminous Flux(lm): 500
Warranty(Year): 3-Year
Working Lifetime(Hour): 50000
Working Temperature(℃): -25 - 55
Color Rendering Index(Ra): 80
Model Number: QLED3-105-11
Emitting Color: White
Power Supply: AC, DC
Light Source: LED
Color: White
Lighting solutions service: Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Agi32 layout, auto CAD layout, Onsite metering, Project Installation
Lifespan (hours): 50000
Working Time (hours): 50000
Item Type: explosion proof led work light
Lamp Body Material: Aluminum Alloy
Name: Otennlux LED machine light
Power: 5W
Voltage: 24V AC/DC
Material: Aluminum+glass
APPLICATIONS: CNC tool, machine center
BASE: Screw Base Installation
CONNECT: Plug
Informazioni di base
Model Number: QLED3-105-11
Termini di pagamento e spedizione
Packaging Details: Carton box
Descrizione di prodotto
Product Description
Name TUBE LIGHT Rated Voltage 24V AC/DC
Power 5W LED Chip SMD5730
Color temperature 6000K~6500K Lifespan 50000H
Environment temperature -25℃~+55℃ Fixed mode fixed by screws
Housing Aluminum alloy Protection Degree IP67
Driver DC with no-driver/AC with driver Glass Material Cancellate glass,tempered
Warranty 3 years Rotation Angle 130 degree

5 watt 24V AC/DC IP67 adjustable waterproof multifunction explosion proof led work light

Features:

*CE,CCC,ROHS Approval;
*Good functions of Water proof,oil proof,anti-corrosion and anti-riot;
*Uniform distribution of light,excellent color rendering and good lighting effects;
*Easy installation and low maintenance;
*The LED chips of light source are imported from USA,it has good performance of low power consumption,high efficiency and long life time;
*The high quality of AC/DC LED driver with the good parameters of low power consumption ,protect circuit function and long life time;
*The qualified aluminum with good dissipation,transparent and tempered glass;
*The quality of waterproof connector,aluminum PCB,silicone rubber sealing ring and reflector/lens;
*Color rendering index>80;
*Abient working temperature:-25℃~+55℃.

More Items
Model Input Voltage Power Color Temperature Luminous Flux Installtion Dimension (L×D×H) Total Length
QLED3-103-1 24V DC 3W 6000K~6500K 360 lm 118mm×40mm×50mm 134mm
QLED3-103-2 24V DC 3W 4000K~4500K 360 lm 118mm×40mm×50mm 134mm
QLED3-103-3 100V~240V AC 3W 6000K~6500K 360 lm 118mm×40mm×50mm 134mm
QLED3-103-4 100V~240V AC 3W 4000K~4500K 360 lm 118mm×40mm×50mm 134mm
QLED3-105-1 24V DC 5W 6000K~6500K 600 lm 218mm×40mm×50mm 234mm
QLED3-105-2 24V DC 5W 4000K~4500K 600 lm 218mm×40mm×50mm 234mm
QLED3-105-3 100V~240V AC 5W 6000K~6500K 600 lm 218mm×40mm×50mm 234mm
QLED3-105-4 100V~240V AC 5W 4000K~4500K 600 lm 218mm×40mm×50mm 234mm
QLED3-106-1 24V DC 6W 6000K~6500K 720 lm 304mm×40mm×50mm 320mm
QLED3-106-2 24V DC 6W 4000K~4500K 720 lm 304mm×40mm×50mm 320mm
QLED3-106-3 100V~240V AC 6W 6000K~6500K 720 lm 304mm×40mm×50mm 320mm
QLED3-106-4 100V~240V AC 6W 4000K~4500K 720 lm 304mm×40mm×50mm 320mm
QLED3-110-1 24V DC 10W 6000K~6500K 1200 lm 304mm×40mm×50mm 320mm
QLED3-110-2 24V DC 10W 4000K~4500K 1200 lm 304mm×40mm×50mm 320mm
QLED3-110-3 100V~240V AC 10W 6000K~6500K 1200 lm 304mm×40mm×50mm 320mm
QLED3-110-4 100V~240V AC 10W 4000K~4500K 1200 lm 304mm×40mm×50mm 320mm
QLED3-112-1 24V DC 12W 6000K~6500K 1440 lm 425mm×40mm×50mm 441mm
QLED3-112-2 24V DC 12W 4000K~4500K 1440 lm 425mm×40mm×50mm 441mm
QLED3-112-3 100V~240V AC 12W 6000K~6500K 1440 lm 425mm×40mm×50mm 441mm
QLED3-112-4 100V~240V AC 12W 4000K~4500K 1440 lm 425mm×40mm×50mm 441mm
QLED3-115-1 24V DC 15W 6000K~6500K 1800 lm 516mm×40mm×50mm 532mm
QLED3-115-2 24V DC 15W 4000K~4500K 1800 lm 516mm×40mm×50mm 532mm
QLED3-115-3 100V~240V AC 15W 6000K~6500K 1800 lm 516mm×40mm×50mm 532mm
QLED3-115-4 100V~240V AC 15W 4000K~4500K 1800 lm 516mm×40mm×50mm 532mm
QLED3-118-1 24V DC 18W 6000K~6500K 2160 lm 602mm×40mm×50mm 618mm
QLED3-118-2 24V DC 18W 4000K~4500K 2160 lm 602mm×40mm×50mm 618mm
QLED3-118-3 100V~240V AC 18W 6000K~6500K 2160 lm 602mm×40mm×50mm 618mm
QLED3-118-4 100V~240V AC 18W 4000K~4500K 2160 lm 602mm×40mm×50mm 618mm
QLED3-124-1 24V DC 24W 6000K~6500K 2880 lm 791mm×40mm×50mm 807mm
QLED3-124-2 24V DC 24W 4000K~4500K 2880 lm 791mm×40mm×50mm 807mm
QLED3-124-3 100V~240V AC 24W 6000K~6500K 2880 lm 791mm×40mm×50mm 807mm
QLED3-124-4 100V~240V AC 24W 4000K~4500K 2880 lm 791mm×40mm×50mm 807mm
QLED3-130-1 24V DC 30W 6000K~6500K 3600 lm 1015mm×40mm×50mm 1031mm
QLED3-130-2 24V DC 30W 4000K~4500K 3600 lm 1015mm×40mm×50mm 1031mm
QLED3-130-3 100V~240V AC 30W 6000K~6500K 3600 lm 1015mm×40mm×50mm 1031mm
QLED3-130-4 100V~240V AC 30W 4000K~4500K 3600 lm 1015mm×40mm×50mm 1031mm
FAQ
Questions
Answer
Our equipment is very special. Can you customize the product size according to our requirements?
We can customize the product according to the customer's request.
Questions
Answer
Can your work lights work in a high temperature environment?
Our working lights can work at -30 C ~100 C.
Questions
Answer
Does your work light anti oil pollution?
Our work lights are waterproof, oil proof and explosion-proof.
Questions
Answer
How loud is the buzzer's sound of the signal light?
The sound of the buzzer for the signal light is 95 decibels.
Questions
Answer
Can your Signal light be used in outdoor?
Our signal light has the characteristics of waterproof and UV protection. IP65, the alarm lamp without buzzer can be used in outdoor.
Questions
Answer
Compared LED lights and traditional lights, Which one has longer life span?
The LED light's life -span will be longer.
Questions
Answer
Where should I consult the product price, inventory, delivery time and other information?
Please contact our sales person,local distributor or agent directly.
Our Services
Guangzhou Otennlux lighting has a complete product after-sales technical service system with good policy and strong technical support , which can guarantee where the product is and where the service team is.Able to satisfy customers' technical and service requirements with maximum capability.
  1. After the product were sold in 3 years, we offer "three guarantees" , during this period, the faulty product will get repaired, replaced or returned if the problem was casued by manufacturing;
  2. Technicians will provide onsite services for the installation, debugging and on-site technical services of major equipmentm in order to solve the problem;
  3. Build up the quality files of the products, carry out regular quality tracking, find out and solve the problems in time;
  4. We actively cooperate with the users to do well the on-site operation and maintenance management of the products, and we can provide the spare parts and accessories of the company's products at any cost at any time;
  5. Adhere to the principle of quality first, customer first, at any time listen to the call of the user, when on-site service is needed, we guarantee to give a reply within 24 hours after receiving the user notification;
  6. On regular inspection, our company takes the inspection system as one of the regular maintenance work, that is, the organization of the company is inspecting the use of the working light every half year, and constantly improving the quality and service of the product.

Company Information
Company Profile
Located in GuangZhou south railway station area,GuangZhou Otennlux lighting Technology Co.,Ltd,was established in2008.It's a high tech company which specializing in LED working light, visual-light, outdoor light and LED warning light.We dedicated ourselves to R&D,Production,and also after-sale service.With our skilled R&D team,our company is fully capable of independent product design and development.Our products include surface-mounted,tube light,Flexible-Head,Pivoting-Head LED,Arm-Mounted,Bracket Light,Magnifier,Multi-Functional Signal,and so on.Most of products got CE,EX,FC and RoHScertifications.We are fully able to meet our customers'needs, producing designs according to their requirements and providing comprehensive support services and solutions.Our products can be made IP67,IP68 and IP69K level waterproof with excellent heat dissipation qualities and canbe adapted to work reliably in harsh environments(-30 to 80 degrees Celsius).Each product batch is burned in at 100% of maximum load temperature for 4 to 24 hours before shipping.Each product has a set of strict control procedures and norms derived from extensive technical research and testing.Our products are mainly used in machine,equipment,CNC,and other projects.Through their widespread use,we have earned a reputation for quality exported to Europe,the United States, Japan and southeast Asia.The company aims to grow its business relationships,with keen market insight,acquiring cutting-edge information in order to be receptive to the needs of the market.We strive to capture the market with a quality product,create a future that encourages talent while always acting with the utmost corporate honesty and integrity.
